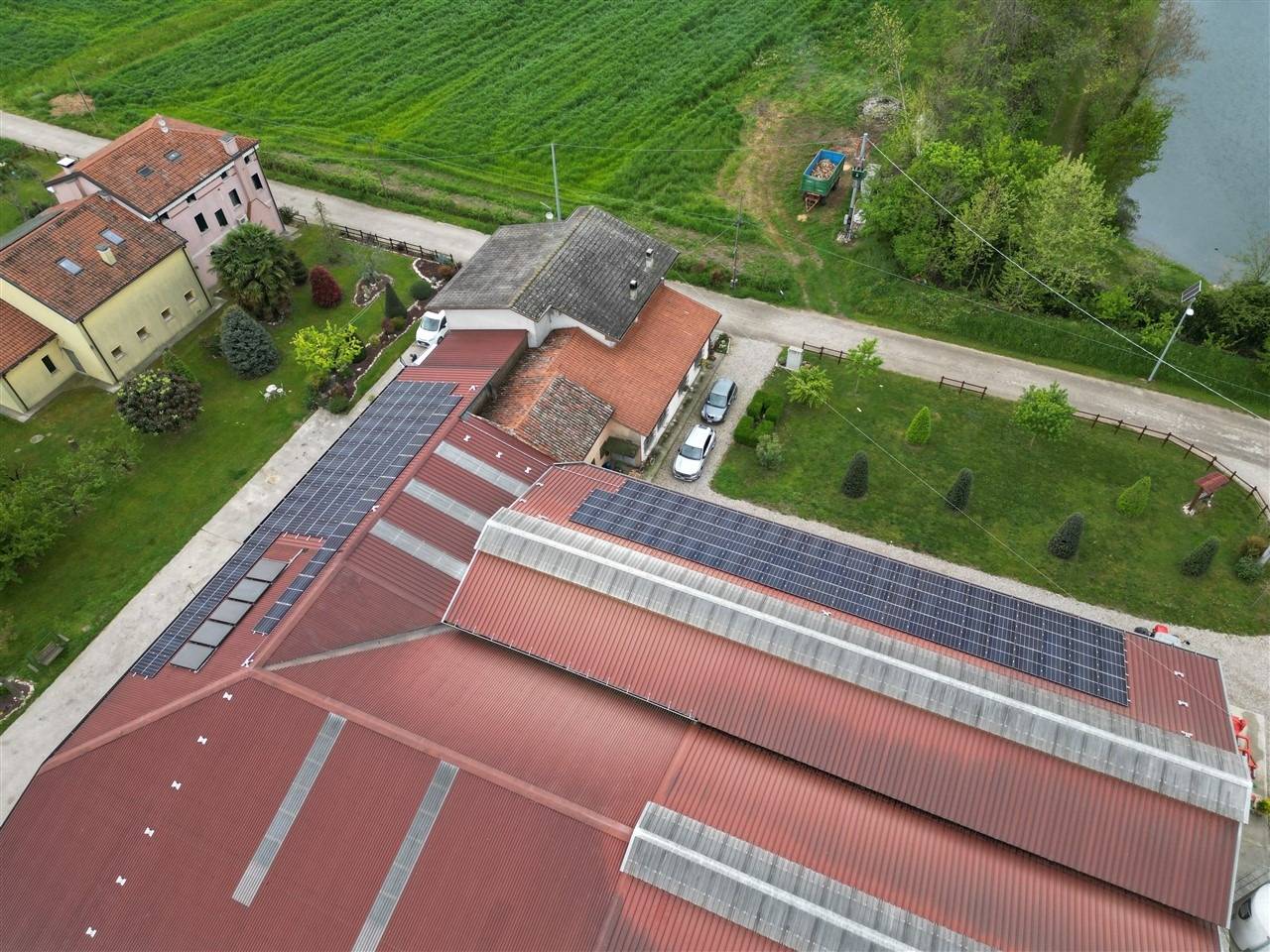

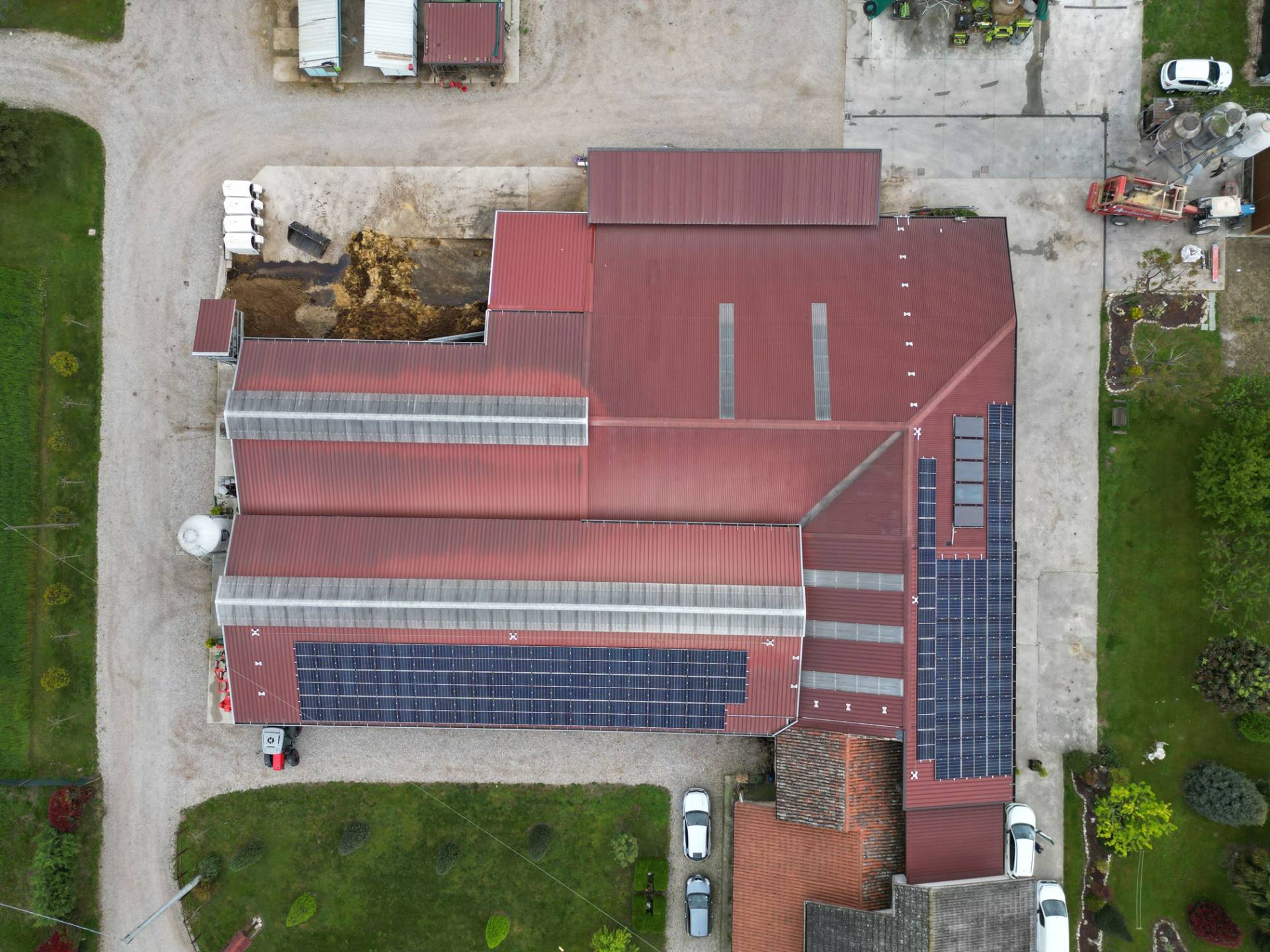

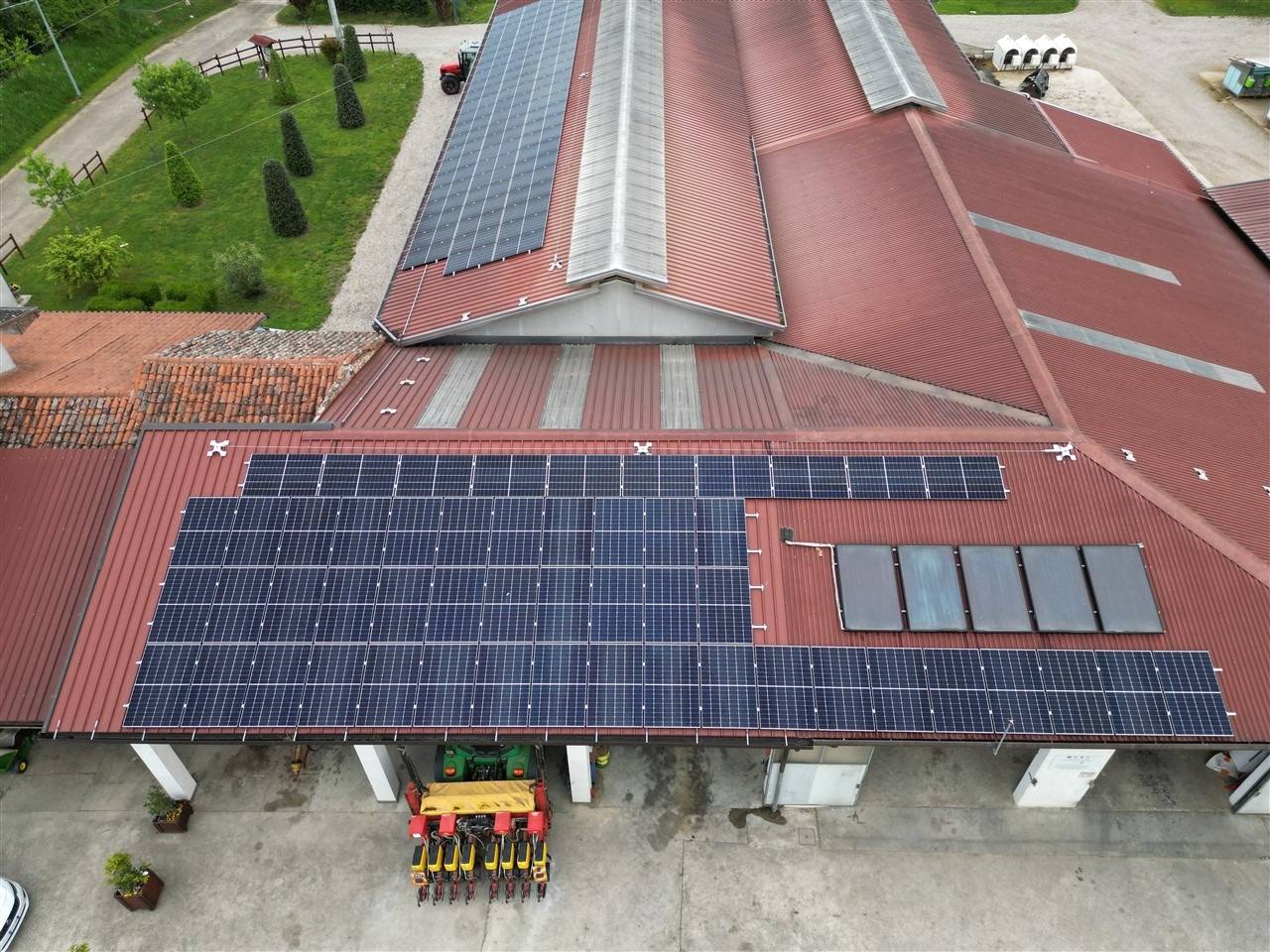

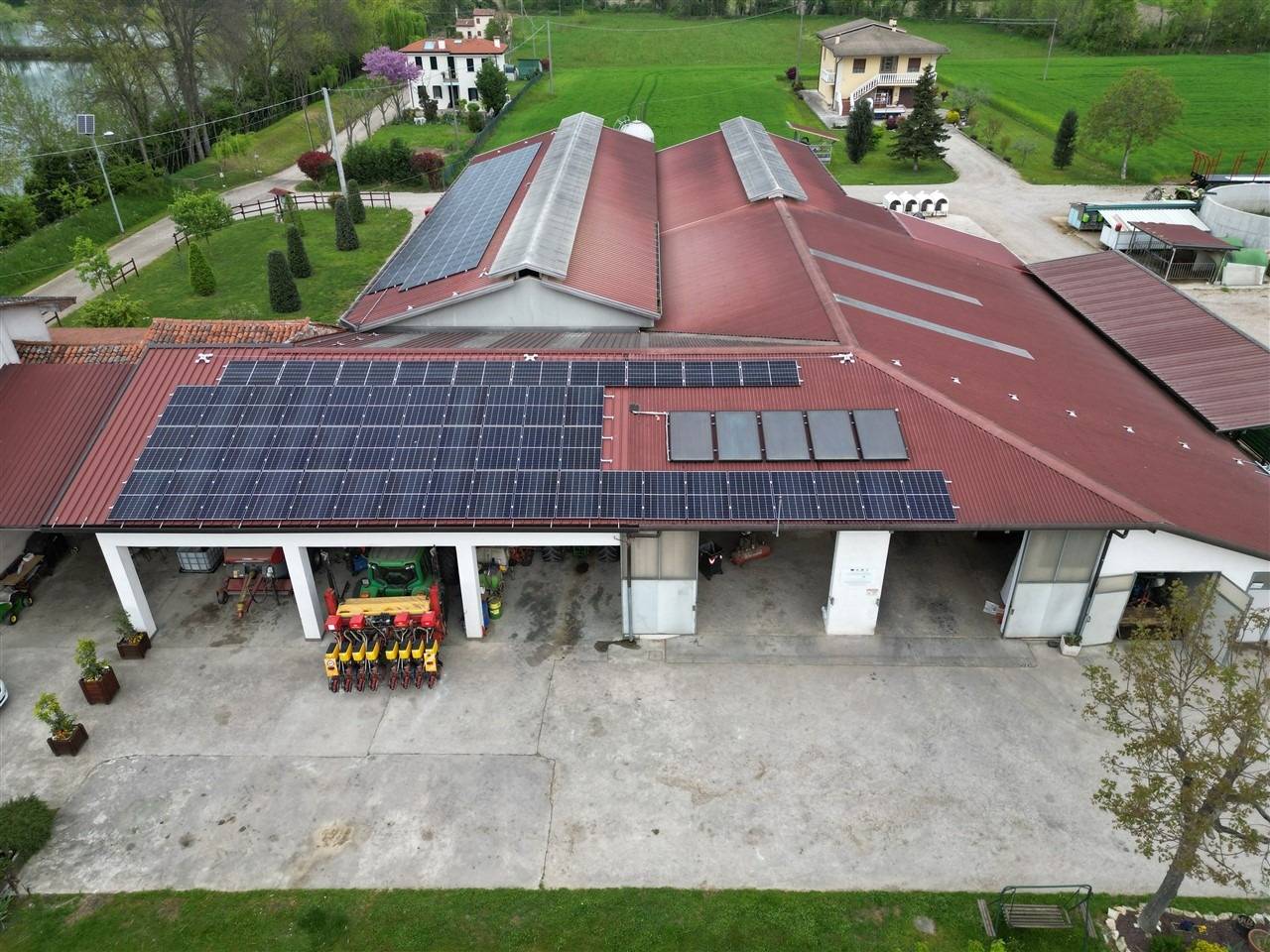

Grisignano di Zocco (VI)

Generator power: 48.79 kWp

This agricultural farm, with 80 lactating animals, produces 1,000 tons of milk per year and cultivates about 100 hectares of cereals and forage.

The photovoltaic generator will have a nominal power of 48.79 kWp, defined as the sum of the nameplate or nominal powers of each module measured under Standard Test Conditions (STC). These conditions specify an irradiance of 1000 W/m² with an AM 1.5 reference solar spectral distribution and a cell temperature of 25°C, in accordance with CEI EN 904/1-2-3 standards.

The photovoltaic generator is composed of 119 monocrystalline silicon photovoltaic modules.

The modules are connected in series and parallel to achieve the optimal voltage and current at the input of the respective inverters, as indicated in the attached wiring diagram.

The connection cables between the modules and the inverter will be solar-specific cables for these applications, with a cross-section of no less than 6 mm².

Estimated annual production: 55,000 kWh/year

Avoided CO2 emissions: 27.5 tons/year
